Vacuum Jet Cleaner

Product Description

Vacuum Jet Cleaner is a compact industrial thermal cleaning device. Designed for small-scale workshop mold cleaning, screw residue removal, and extrusion parts carbon cleaning, this mini vacuum thermal cleaner adopts vacuum pyrolysis technology to safely and thoroughly remove plastic residue, thermoset buildup, carbon deposits, and grease from metal precision parts. With standard φ370×400mm furnace chamber and φ300×300mm cleaning basket, matched with 4.5KW high-efficiency heating system and 1.5KW stable vacuum pump, the VCV34 model balances low energy consumption and high cleaning performance, becoming the cost-effective replacement for imported mini jet cleaning equipment.

Working Principle

Most traditional part cleaning methods including manual scraping, chemical soaking, and high-pressure water flushing have obvious defects: easy damage to precision workpiece tolerance, residual dirt, chemical pollution, and low efficiency. The VCV34 vacuum jet cleaner abandons conventional cleaning modes and applies low-oxygen vacuum pyrolysis cleaning principle to complete non-destructive industrial cleaning.

In the sealed vacuum furnace chamber, the equipment uses a 4.5KW constant-temperature heating system to heat the internal cavity evenly. Under low-oxygen and high-temperature environment, organic attachments such as plastic residue, polymer buildup and carbon deposits are fully pyrolyzed and gasified. Meanwhile, the 1.5KW vacuum pump continuously extracts decomposed gas and tiny impurities, realizing integrated purification and cleaning. The whole process causes no oxidation, deformation or tolerance loss to metal workpieces, achieving thorough and residue-free cleaning effect.

Advantages

Vacuum jet cleaner realizes performance matching and cost optimization, with multiple practical advantages for industrial users:

Moderate Size & Wide Compatibility：Equipped with φ370*400mm furnace chamber and φ300*300mm standard basket, it perfectly adapts to small and medium-sized extrusion dies, breaker plates, granulator parts and small screw workpieces, covering most daily workshop cleaning scenarios.
Energy-Saving Power Configuration：Matched with 4.5KW professional heating power and 1.5KW dedicated vacuum pump power, the heating speed is fast, the vacuum degree is stable, and the invalid energy consumption is greatly reduced compared with large cleaning equipment, suitable for long-term continuous use.
Non-Destructive Precision Cleaning：Low-oxygen vacuum environment avoids high-temperature oxidation, no mechanical friction and chemical corrosion, effectively protects the precision and surface finish of metal workpieces.

Specifications

Parameter Item	Specific Specification
Product Model	VCV34
Equipment Type	Mini Vacuum Pyrolysis Cleaning Machine
Furnace Chamber Dimension	φ370 * 400mm

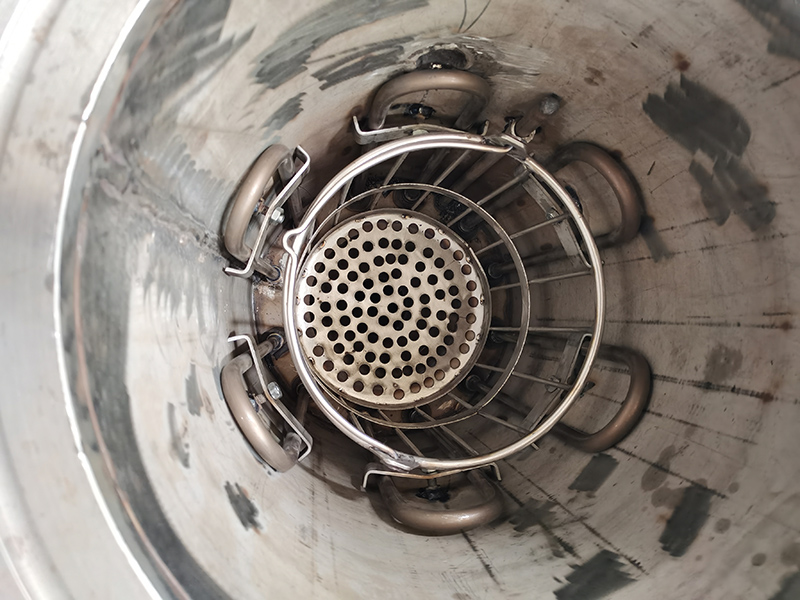

Effective Cleaning Basket Size	φ300 * 300mm
Rated Heating Power	4.5KW
Vacuum Pump Power	1.5KW
Cleaning Technology	Vacuum Low-Oxygen High-Temperature Pyrolysis
Cleaning Object	Plastic residue, thermoset buildup, carbon deposits, grease on metal precision parts
Applicable Workpieces	Extrusion molds, breaker plates, small screws, granulator accessories, plastic machinery parts
Core Features	Compact, energy-saving, non-destructive, environmental-friendly, low maintenance

Applicable Industries

The VCV34 vacuum jet cleaner is a mini high-precision thermal cleaning equipment, widely used in plastic extrusion, polymer granulation, chemical fiber processing, rubber and plastic machinery, new material industry, solving various workpiece cleaning pain points for users:

Daily cleaning of small and medium extrusion molds and filter plates to remove plastic residue and carbon accumulation;
Decontamination and decarbonization of precision small screw accessories and granulator cutter parts;
Regular maintenance cleaning of polymer processing equipment parts to avoid residue affecting product quality;
Laboratory small batch workpiece cleaning and precision part renovation cleaning.

Final Summary

The VCV34 Vacuum Jet Cleaner fills the market gap of low-cost and high-performance mini thermal cleaning equipment. With standardized furnace chamber size, stable 4.5KW heating system and 1.5KW vacuum system, it realizes efficient, safe and green non-destructive cleaning.
