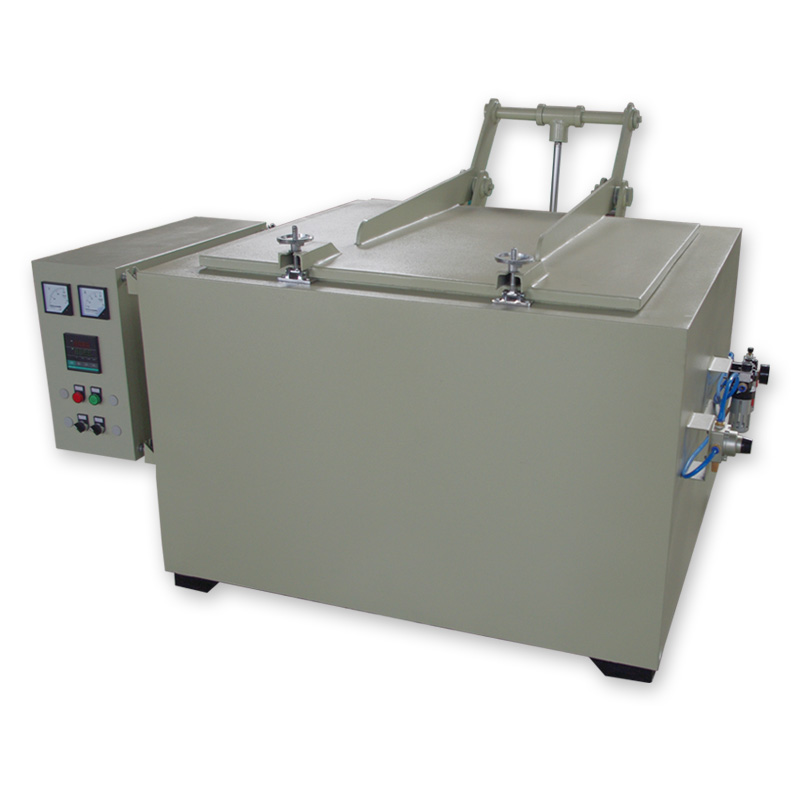

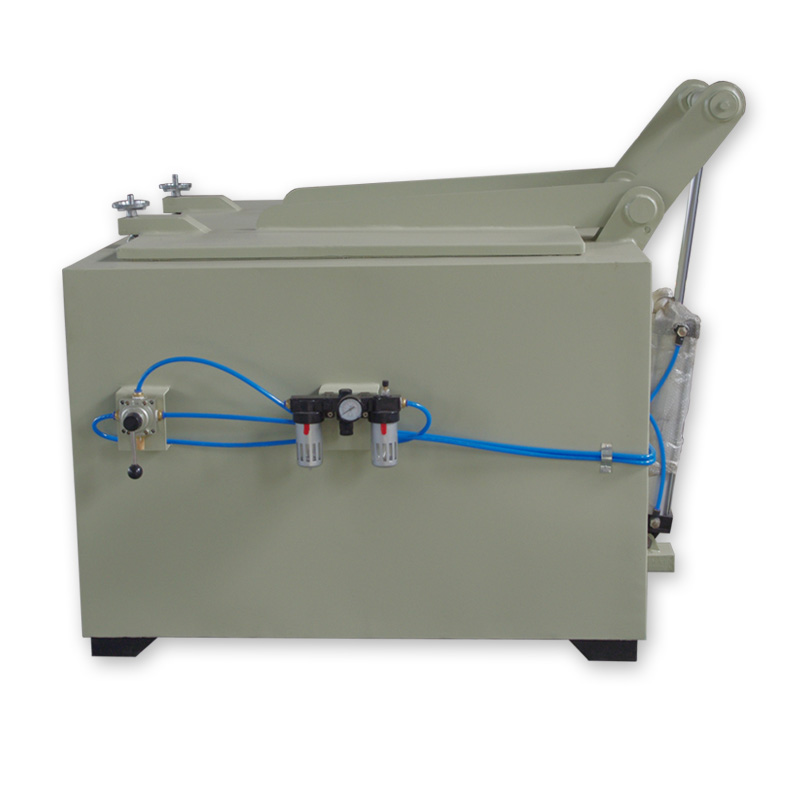

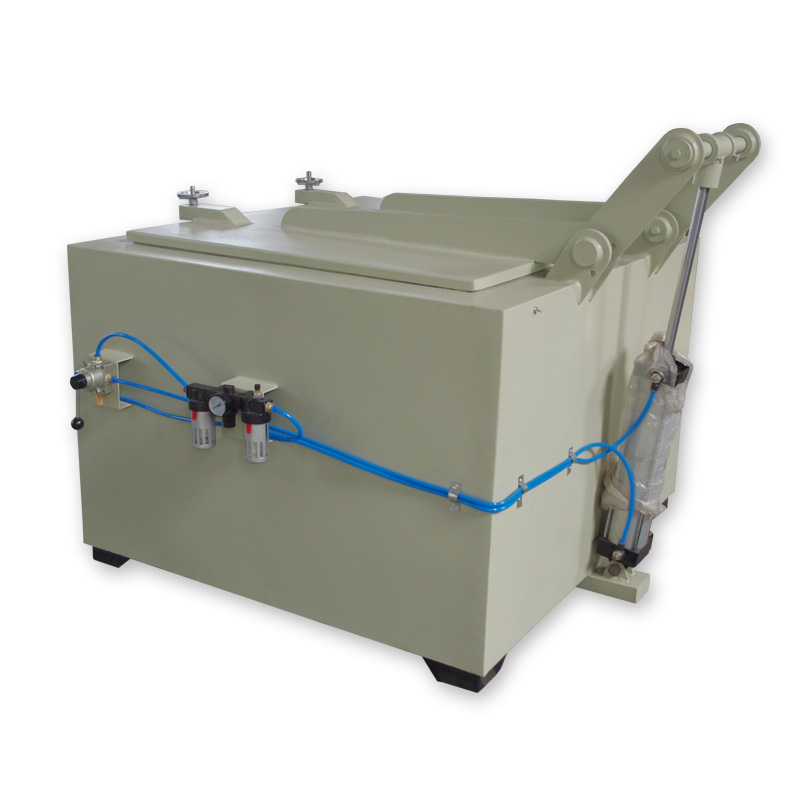

Spinning packs preheating oven

Model: PHT
Power Supply: 380V 3Ph 50Hz (Customizable)
Application:  Spinning packs
Workong Temperature: 250°C to 350°C
Heating:  Electric heating
Temperature Control: Meter or PLC control
Control Accuracy: ±1°C
Color: Customizable

Category:

Product Description

Spin Packs Preheat Ovens are used for preheating parts before they are used in some type of application.  Most of our preheat ovens are custom-designed for preheating Spinneretes, Spin packs, Extruder Die Packs and Filter assemblies.

► APPLICATIONS

  • Preheat Spin packs
  • Preheat Spinnerets
  • Preheat Die
  • Preheat Filter assemblies

► CONTROL

  • Precise PID temperature control
  • SSR or SCR power controllers
  • Operating Temperature Range : 250°C to 350°C
  • Simple operation and complete safety protection function
  • High volume recirculation blower for uniform temperature
  • Audible and visible alarm indicators
  • Control Accuracy: ±1°C
  • Uniformity: ±5°C
  • Available input power supply to your specifications
  • Temperature recorder (optional)
  • PLC with HMI(touch panel) (optional)
  • Programmable temperature controllers (optional)

► SAFETY PROTECTION

  • Separate excess temperature interlock to turn off heat on malfunction of main temperature controller
  • Electrical interlock shuts off heat if recirculating blower is broken

► FEATURES

  • Recirculating Blower – A blower with a totally enclosed fan cooled motor was installed on the oven to evenly distribute the heat around the extruder dies.   It was mounted on the side of the oven for forced convection, allowing the parts to be heated quickly.
  • Control Panel – The digital PID Controller is mounted on the control panel .  A standard “ON/OFF”  indicating light was also provided, which is bright enough to be seen from a distance.
  • Exterior – The exterior is constructed of carbon steel.
  • Interior – The interior is constructed of stainless steel.  It has heating elements installed at the bottom of the oven.
  • Front loading or Top loading as per request
  • Durable tubular heating elements
  • All welded construction
  • Durable recirculating blower
  • Adjustable exhaust outlet damper
  • Durable loading shelf
  • Insulated with alumina silicate fibre insulation

Notes: The unit could be entirely bespoke, we can design and tailor oven to the customer’s specification.
